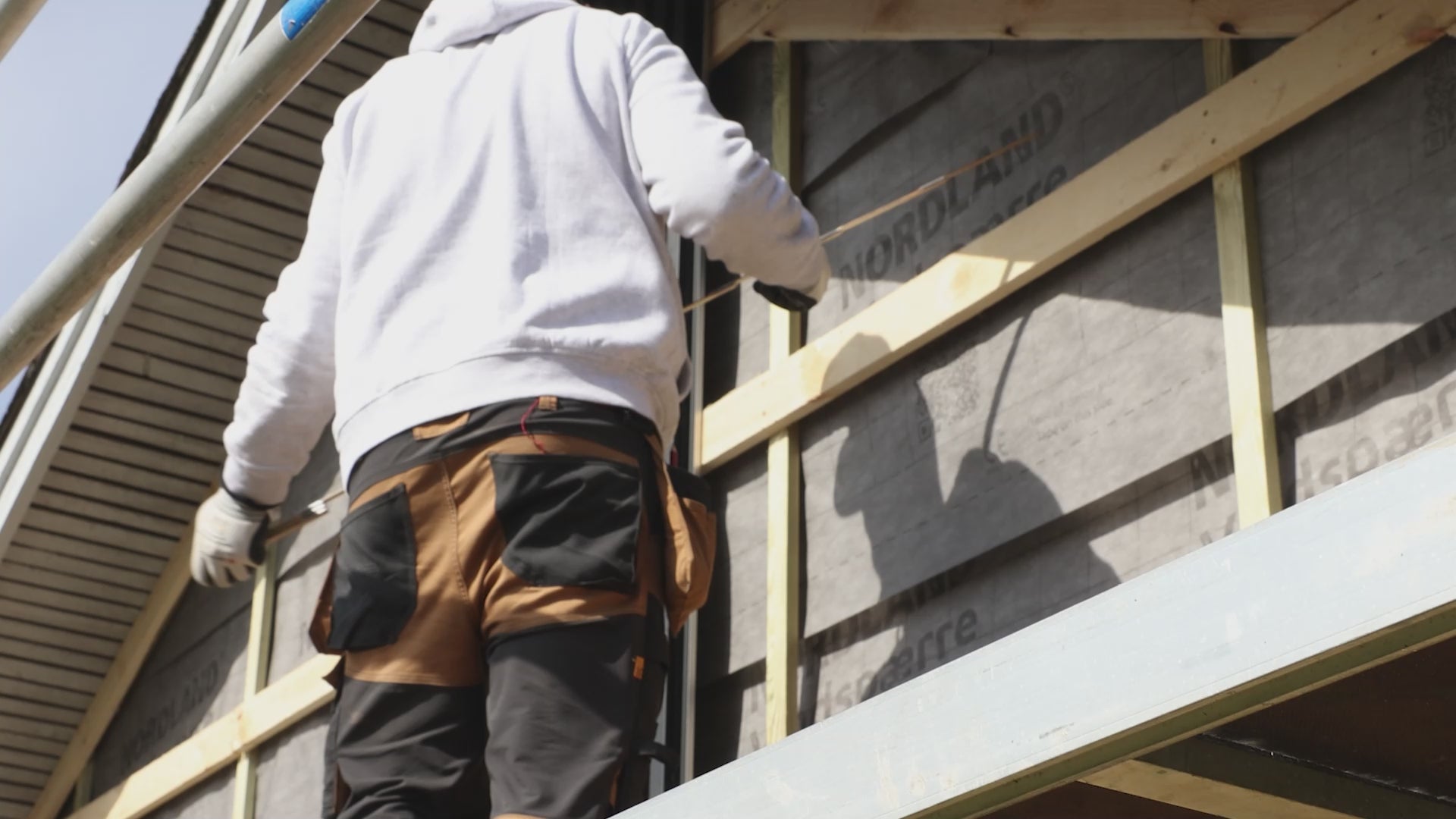

Before installing AluWood, make sure the wall is properly prepared. Start by removing any old wood so the surface is clean. Then install the weather barrier to protect the structure from moisture. Once that is in place, install ventilation battens behind the panels – remember that the distance between them must not exceed 80 cm.

Finally, install the insect mesh to prevent small animals and insects from getting in. Not sure how? See the solution in the video below.

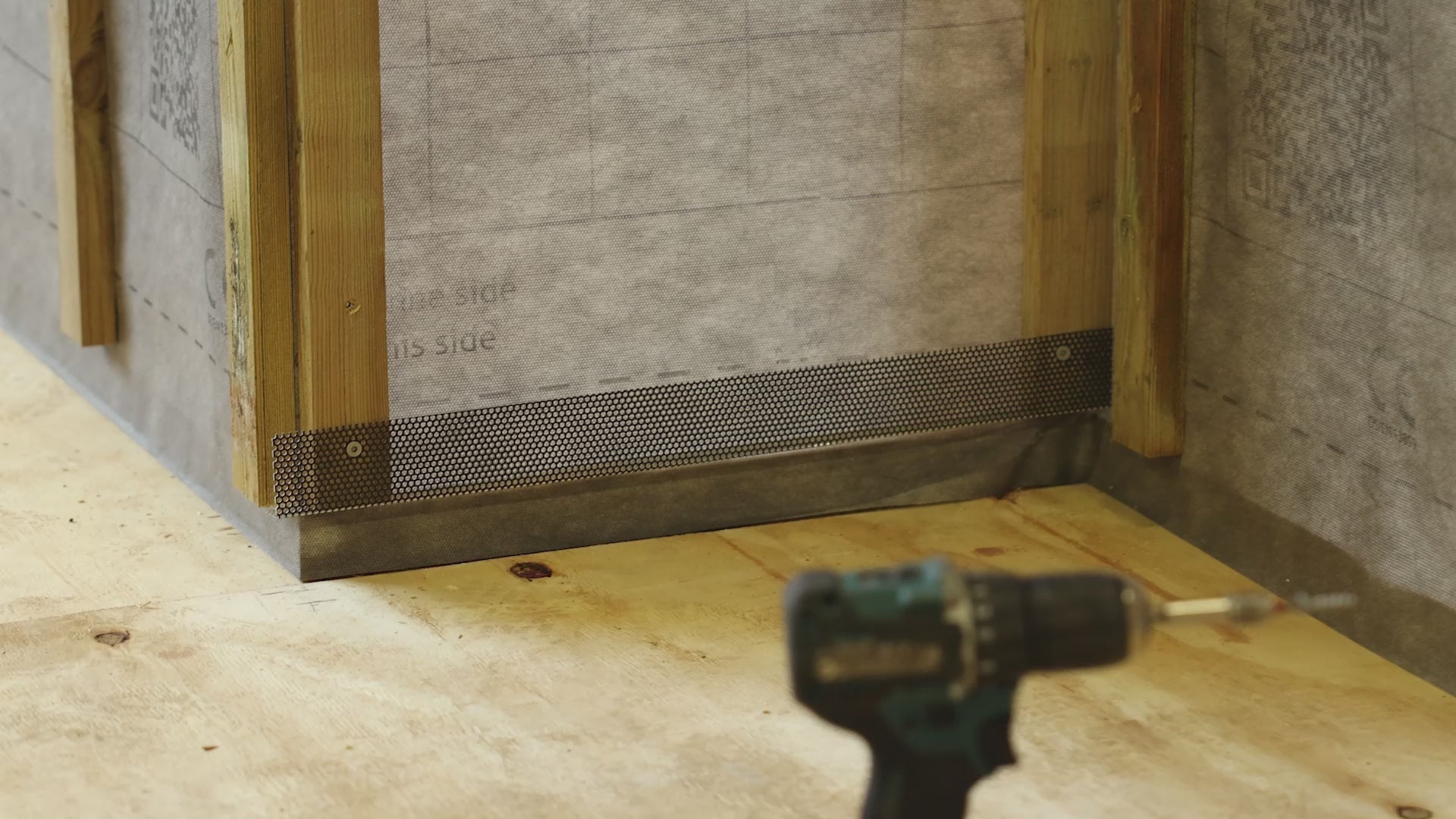

Whether it is installed at the bottom or top of the façade, the principle is the same: Make sure the insect mesh fully covers the opening to keep small animals and insects out. Fasten it by screwing directly through the mesh and into the ventilation battens.

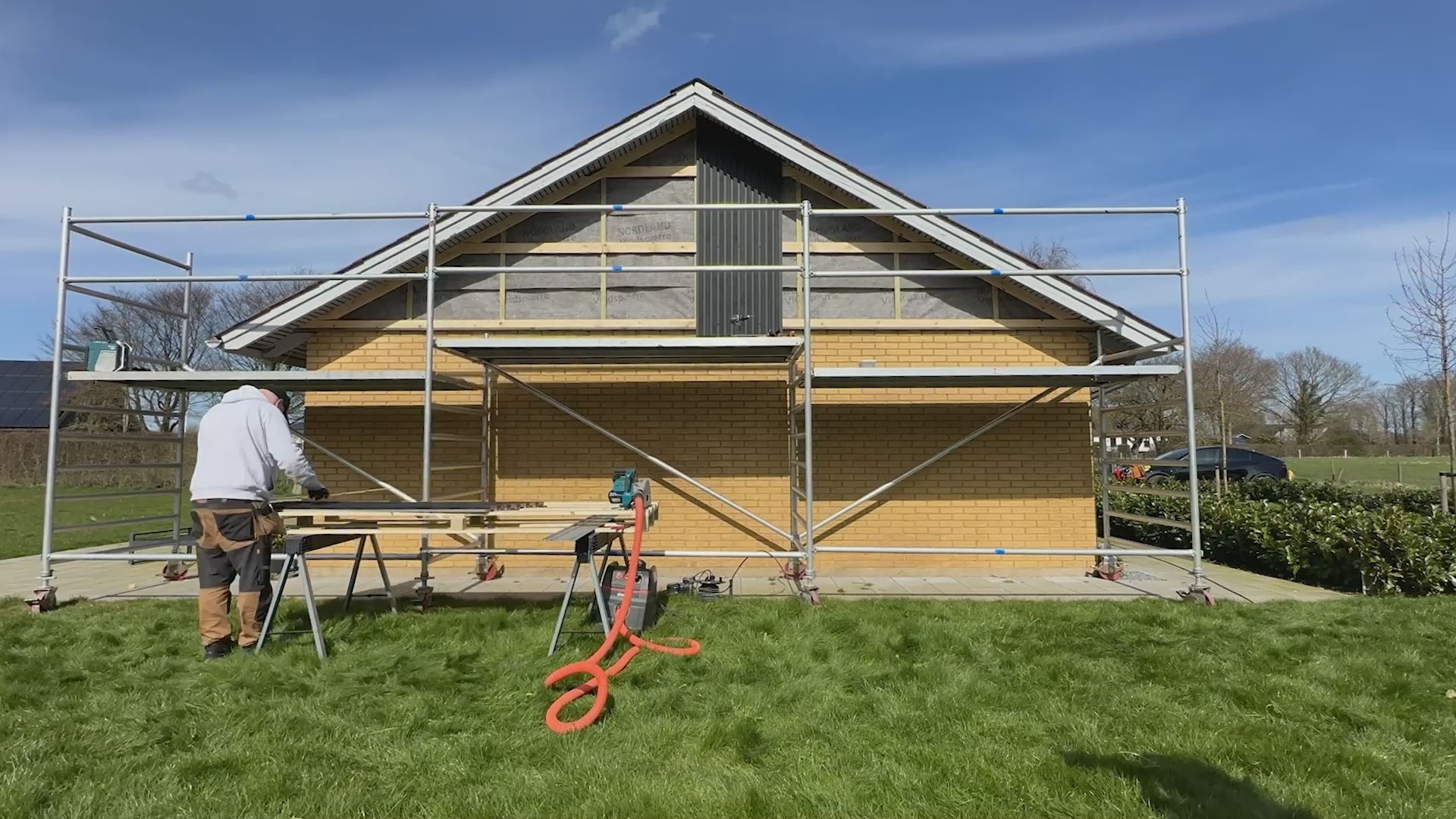

Measure the wall to determine where you want to place the panels and whether they need to be cut to fit.

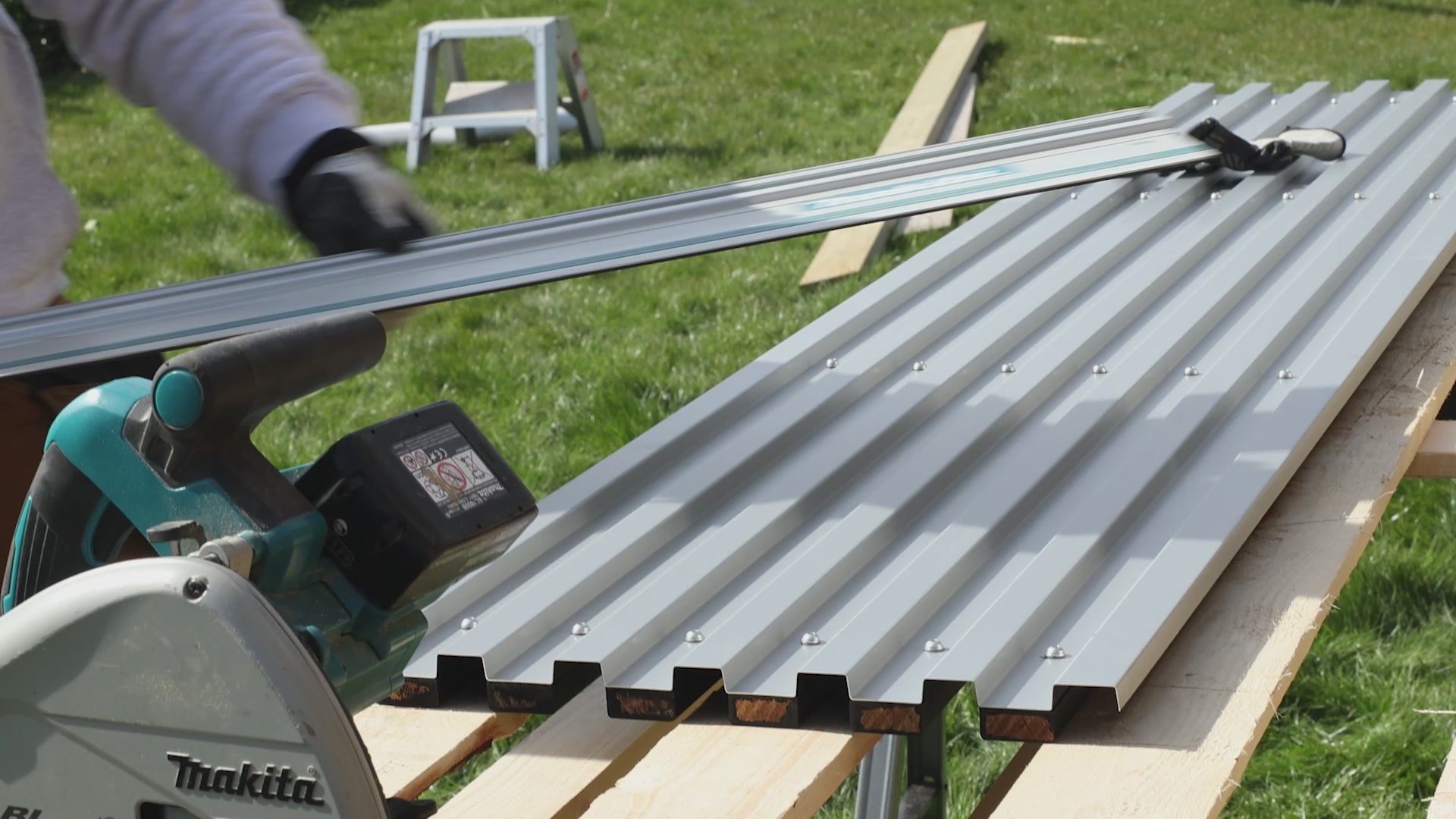

If you need to cut the panels, use a circular saw.

Important: Check the direction of the panels before cutting and installing them.

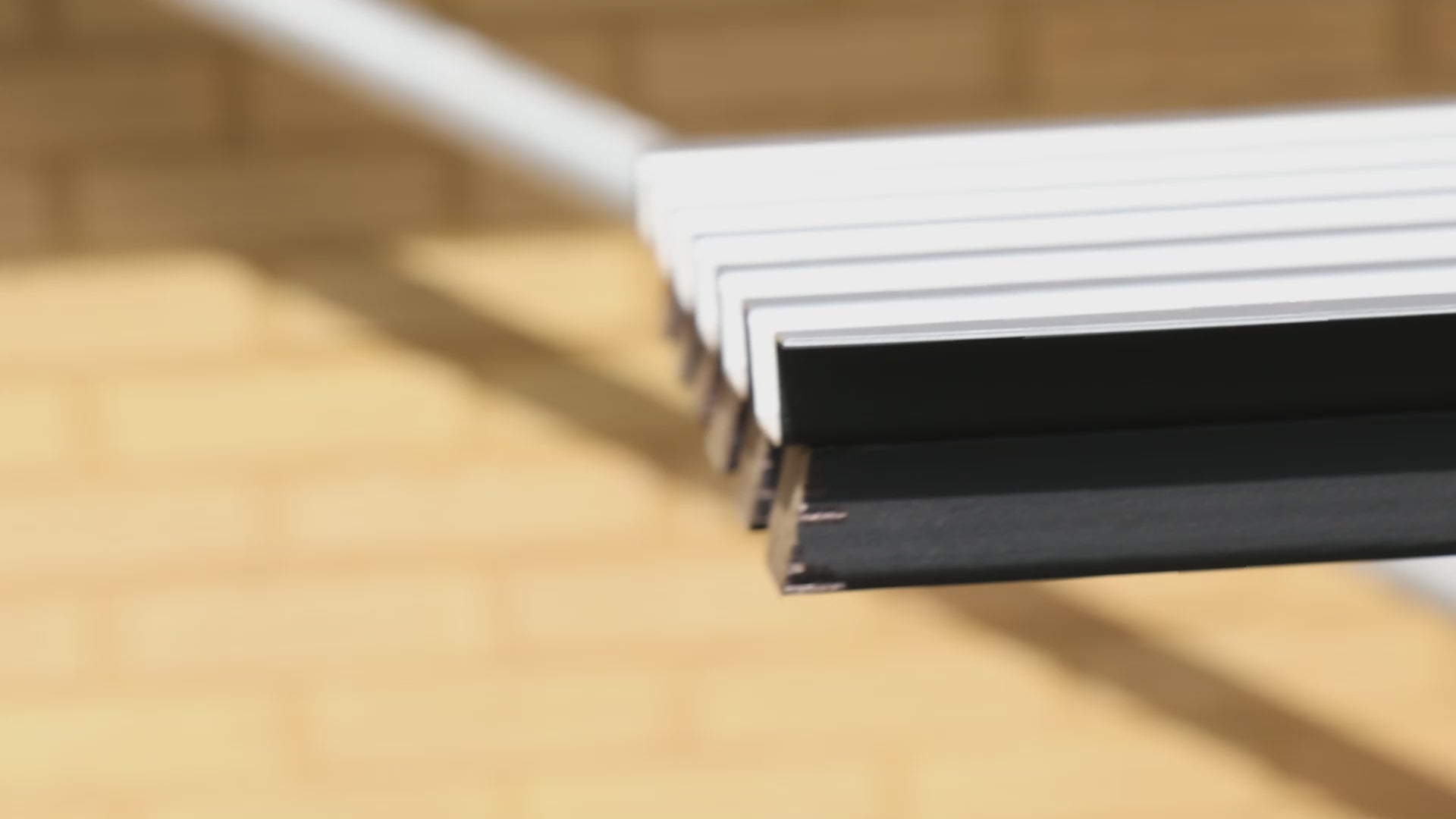

Make sure to account for the panel orientation. The panel has a top and a bottom side. The lower edge has a 15-degree angle so water can run off properly.

Check the back of the panel to see if extra screws are needed to ensure good stability.

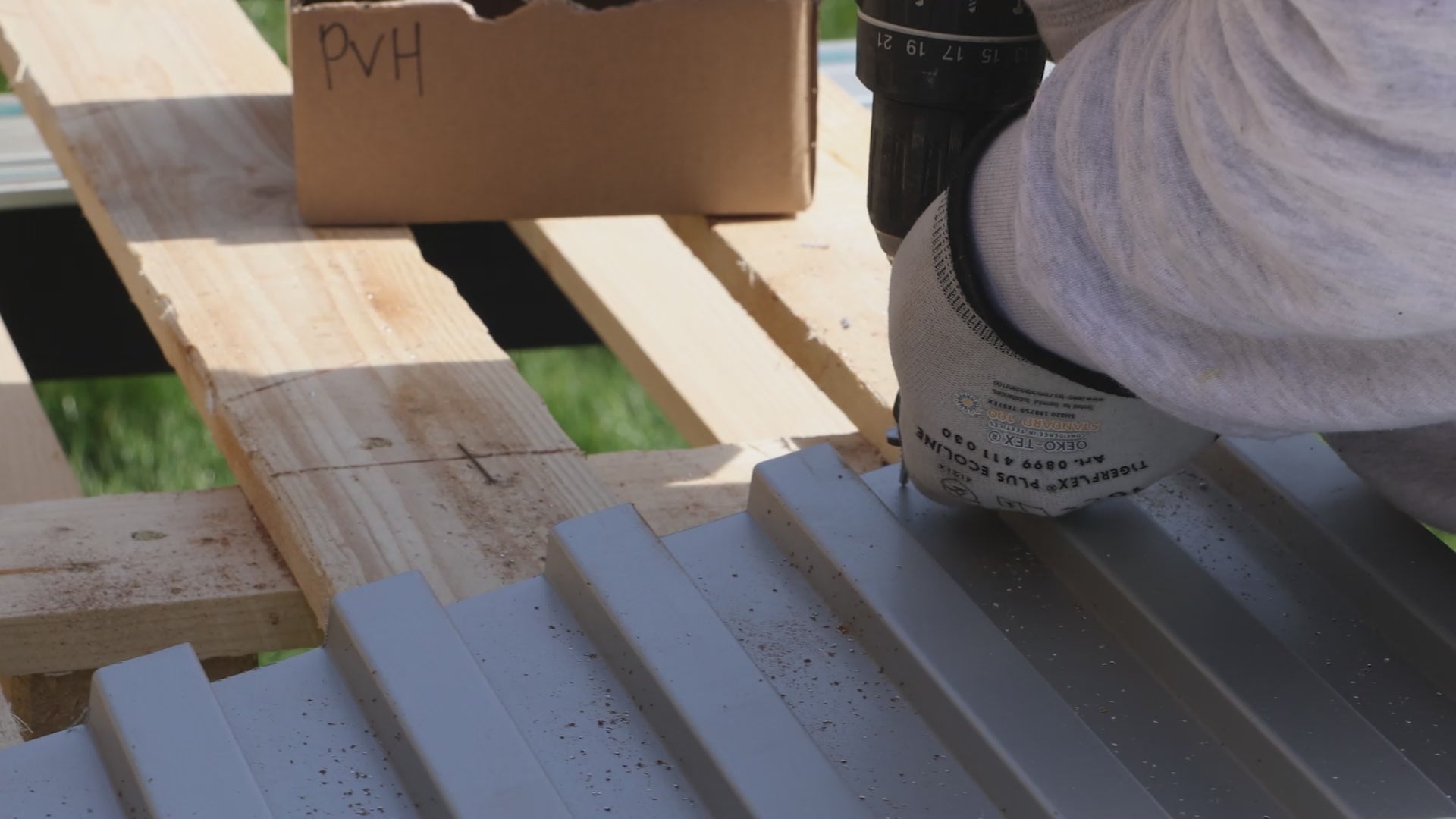

Make sure the back is securely fastened. If you have cut the panel to size, some of the screws may have been removed. If so, use our inner screws to refasten any loose areas so the back is completely stable.

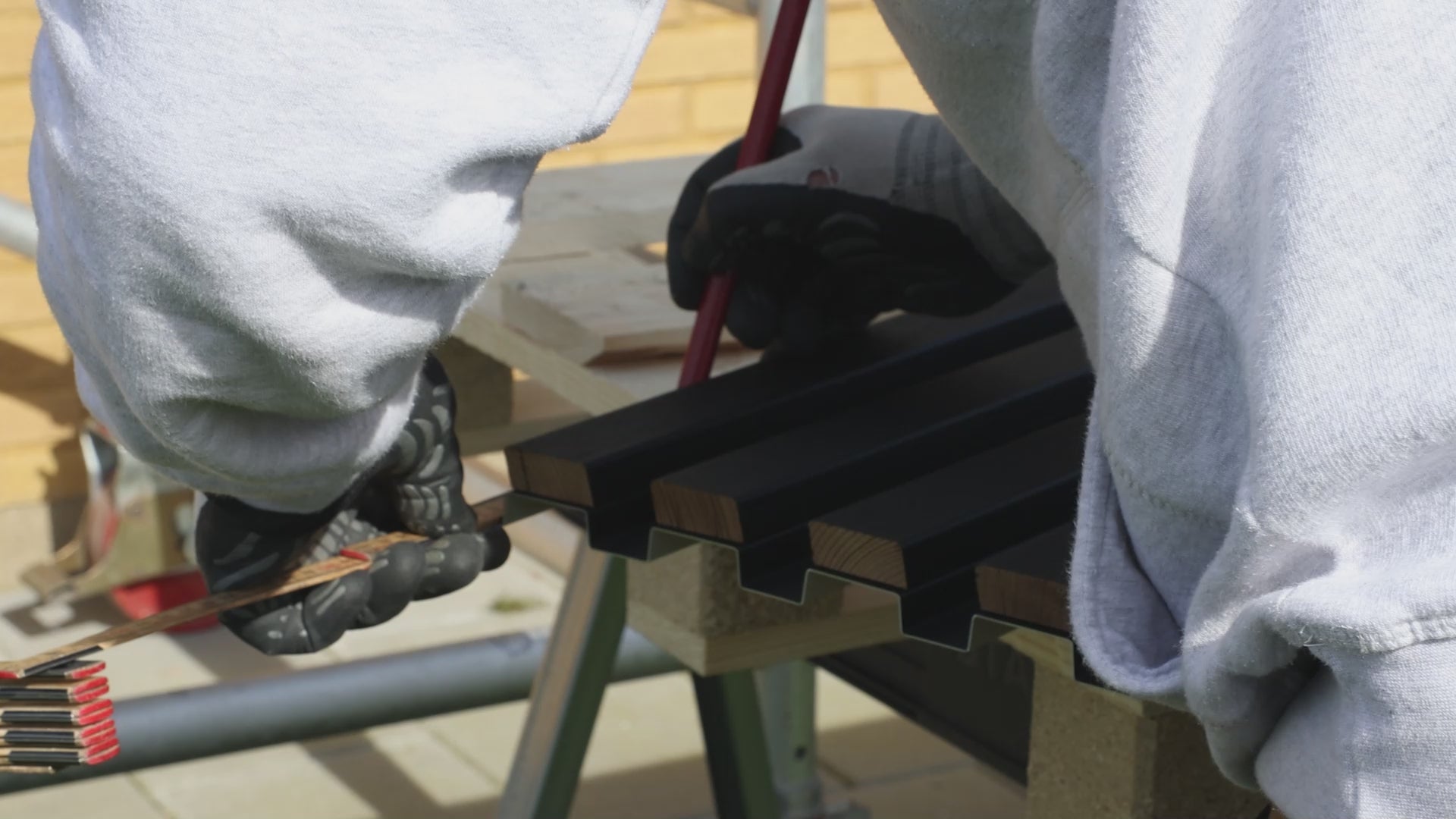

For a clean and even result, draw a straight line on the panel as a guide for screw placement.

Make sure the 15-degree angle faces downward. Use our outer screws and drive them through the aluminium sheet and into the battens. Follow your markings to ensure straight screw lines.

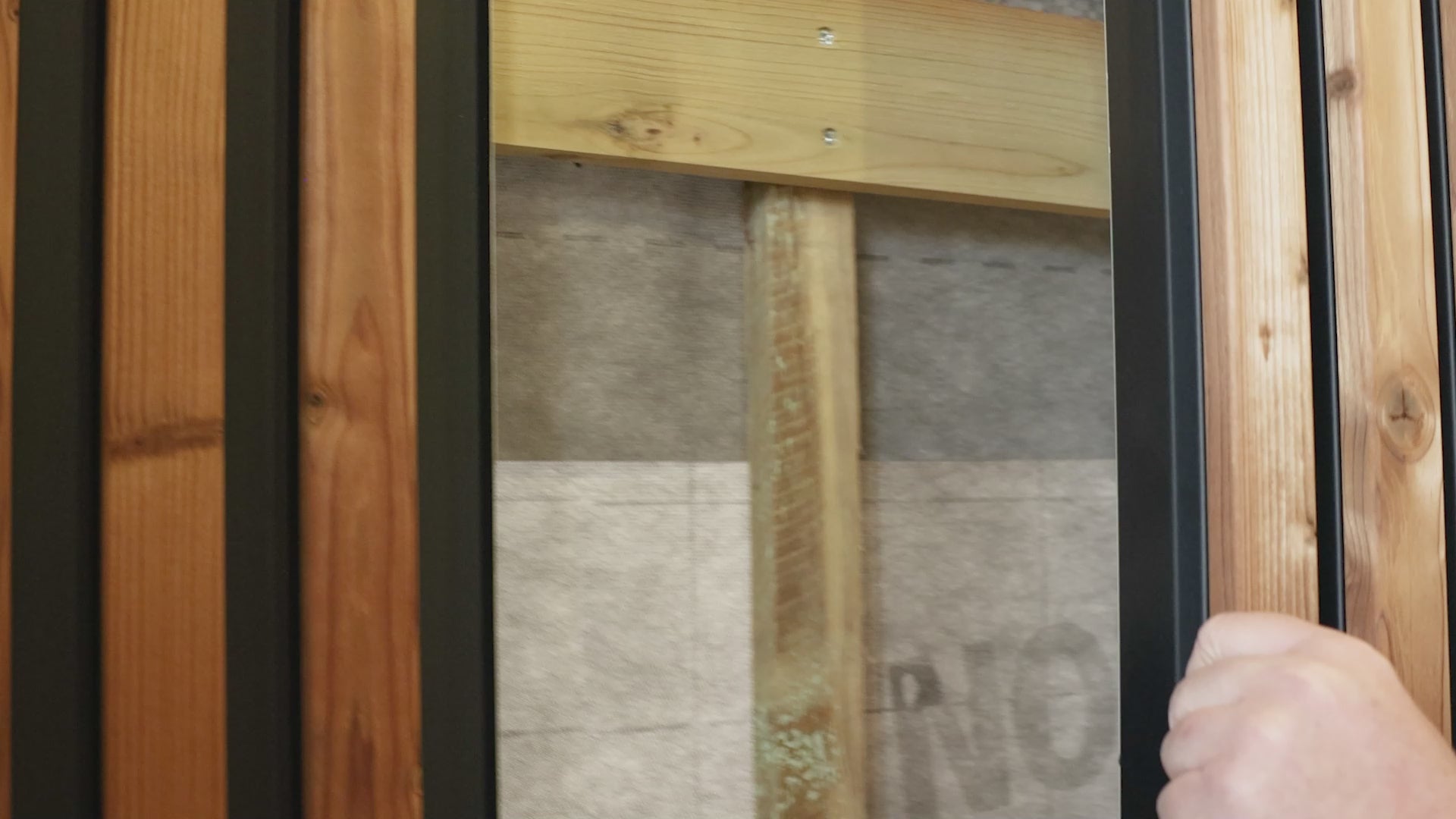

When installing the next panel, place it on top of the previous one so they overlap. See how it is done in the video below. Then drive the screw through the double layer of aluminium and into the batten.

Repeat the process, panel by panel, until the entire wall is covered.
